Pipeline from Decorators

The pipeline_from_decorator.py example demonstrates the creation of a pipeline in ClearML using the PipelineDecorator class.

This example creates a pipeline incorporating four tasks, each of which is created from a python function using a custom decorator:

• executing_pipeline- Implements the pipeline controller which defines the pipeline structure and execution logic.
• step_one - Downloads and processes data.
• step_two - Further processes the data from step_one.
• step_three - Uses the processed data from step_two to train a model.

The pipeline steps, defined in the step_one, step_two, and step_three functions, are each wrapped with the @PipelineDecorator.component decorator, which creates a ClearML pipeline step for each one when the pipeline is executed.

The logic that executes these steps and controls the interaction between them is implemented in the executing_pipeline function. This function is wrapped with the @PipelineDecorator.pipeline decorator which creates the ClearML pipeline task when it is executed.

The sections below describe in more detail what happens in the pipeline controller and steps.

Pipeline Controller

In this example, the pipeline controller is implemented by the executing_pipeline function.

Using the @PipelineDecorator.pipeline decorator creates a ClearML Controller Task from the function when it is executed. For detailed information, see @PipelineDecorator.pipeline.

In the example script, the controller defines the interactions between the pipeline steps in the following way:

1. The controller function passes its argument, pickle_url, to the pipeline's first step (step_one)
2. The returned data from the first step, data_frame, is passed to step_two
3. The second step's output, preprocessed_data, is modified within the pipeline execution logic
4. The modified data is passed to the third step, step_three.

Pipeline Steps

Using the @PipelineDecorator.component decorator will make the function a pipeline component that can be called from the pipeline controller, which implements the pipeline's execution logic. For detailed information, see @PipelineDecorator.component.

When the pipeline controller calls a pipeline step, a corresponding ClearML task will be created. For this reason, each function which makes up a pipeline step needs to be self-contained. Notice that all package imports inside the function will be automatically logged as required packages for the pipeline execution step.

Pipeline Execution

PipelineDecorator.set_default_execution_queue('default')

# PipelineDecorator.debug_pipeline()

executing_pipeline(
    pickle_url='https://github.com/allegroai/events/raw/master/odsc20-east/generic/iris_dataset.pkl',
)

By default, the pipeline controller and the pipeline steps are launched through ClearML queues. Use the PipelineDecorator.set_default_execution_queue method to specify the execution queue of all pipeline steps. The execution_queue parameter of the @PipelineDecorator.component decorator overrides the default queue value for the specific step for which it was specified.

:::note Execution Modes ClearML provides different pipeline execution modes to accommodate development and production use cases. For additional details, see Execution Modes. :::

To run the pipeline, call the pipeline controller function.

WebApp

When the experiment is executed, the terminal returns the task ID, and links to the pipeline controller task page and pipeline page.

ClearML Task: created new task id=bc93610688f242ecbbe70f413ff2cf5f
ClearML results page: https://app.clear.ml/projects/462f48dba7b441ffb34bddb783711da7/experiments/bc93610688f242ecbbe70f413ff2cf5f/output/log
ClearML pipeline page: https://app.clear.ml/pipelines/462f48dba7b441ffb34bddb783711da7/experiments/bc93610688f242ecbbe70f413ff2cf5f

The pipeline run’s page contains the pipeline’s structure, the execution status of every step, as well as the run’s configuration parameters and output.

To view a run’s complete information, click Full details on the bottom of the Run Info panel, which will open the pipeline’s controller task page.

Click a step to see an overview of its details.

Console and Code

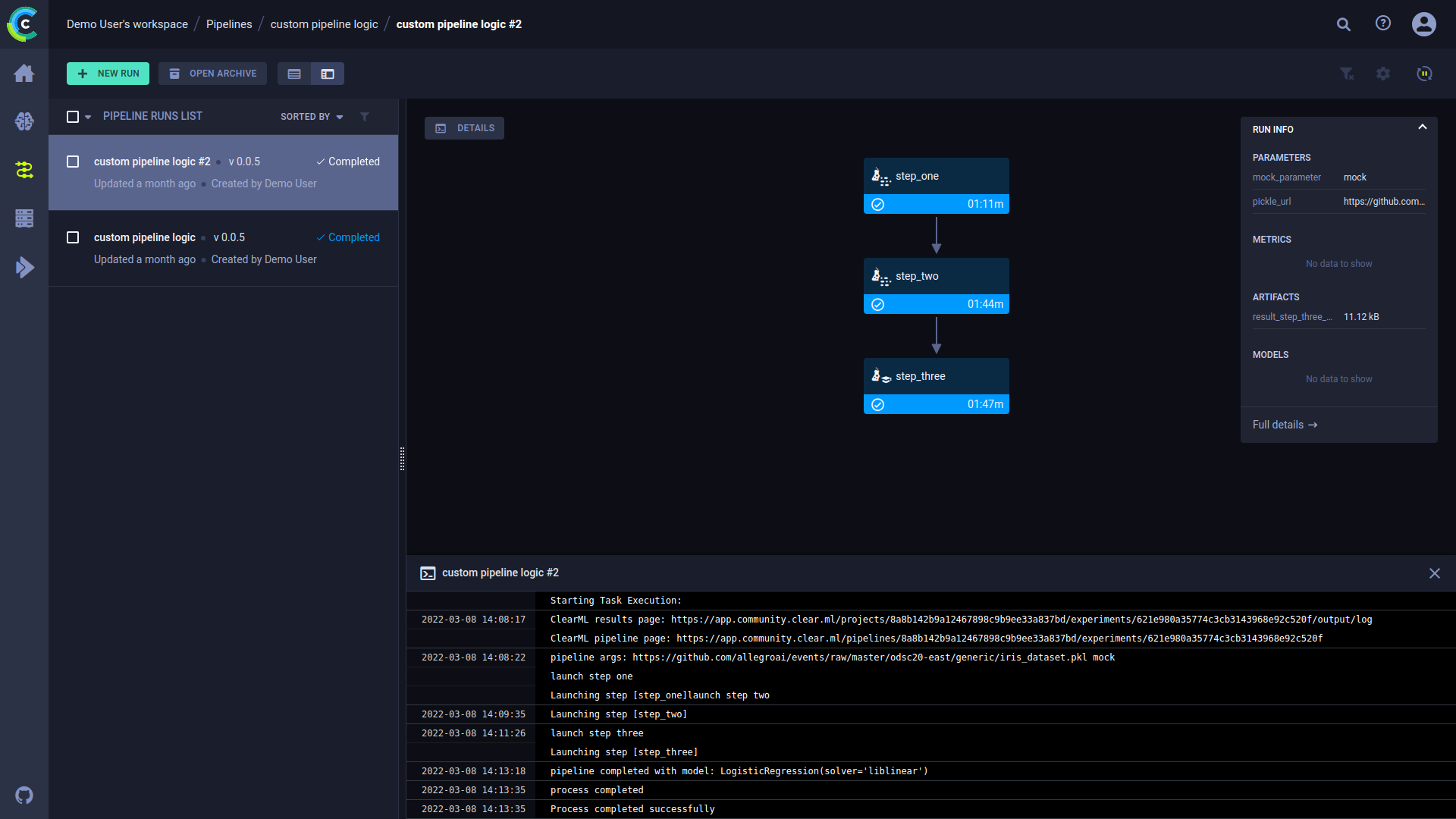

Click DETAILS to view a log of the pipeline controller’s console output.

Click on a step to view its console output. You can also view the selected step’s code by clicking CODE on top of the console log.
