title: The Experiments Table
---
The experiments table is a [customizable](#customizing-the-experiments-table) list of experiments associated with a project. From the experiments
table, view experiment details, and work with experiments (reset, clone, enqueue, create [tracking leaderboards](../guides/ui/building_leader_board.md)
to monitor experimentation, and more). The experiments table's auto-refresh lets users continually monitor experiment progress.
View the experiments in table view
,
details view
, or
comparison view
using the buttons on the top left of the page. Use the table view for a comparative view of your experiments according
to columns of interest. Use the details view to access a selected experiment's details, while keeping the experiment list
in view. Details view can also be accessed by double-clicking a specific experiment in the table view to open its details view.
Use the [comparison view](#comparing-experiments) to compare your experiments' scalar and plot results (for a more in
depth comparison, see [Comparing Experiments](webapp_exp_comparing.md)). This view compares
the scalars/plots of currently selected experiments. If no experiments are selected, the first 100
visible experiments in the table are compared.
You can archive experiments so the experiments table doesn't get too cluttered. Click **OPEN ARCHIVE** on the top of the
table to open the archive and view all archived experiments. From the archive, you can restore
experiments to remove them from the archive. You can also permanently delete experiments.
You can download the experiments table as a CSV file by clicking
and choosing one of these options:
* **Download onscreen items** - Download the values for experiments currently visible on screen
* **Download all items** - Download the values for all experiments in this project that match the current active filters
The downloaded data consists of the currently displayed table columns.
## Creating Experiments
You can create experiments by:
* Running code instrumented with ClearML (see [Task Creation](../clearml_sdk/task_sdk.md#task-creation))
* [Cloning an existing experiment](webapp_exp_reproducing.md)
* Through the UI interface: Input the experiment's details, including its source code and python requirements, and then
run it through a [ClearML Queue](../fundamentals/agents_and_queues.md#what-is-a-queue) or save it as a *draft*.
To create an experiment through the UI interface:
1. Click `+ New Experiment`
1. In the `Create Experiment` modal, input the following information:
* **Code**
* Experiment name
* Git
* Repository URL
* Version specification - one of the following:
* Tag
* Branch
* Commit ID
* Execution Entry Point
* Working Directory
* One of the following
* Script name
* Module (see [python module specification](https://docs.python.org/3/using/cmdline.html#cmdoption-m))
* Add `Task.init` call - If selected, [`Task.init()`](../references/sdk/task.md#taskinit) call is added to the
entry point. Select if it is not already called within your code
* **Arguments** (*optional*) - Add [hyperparameter](../fundamentals/hyperparameters.md) values.
* **Environment** (*optional*) - Set up the experiment’s python execution environment using either of the following
options:
* Use Poetry specification - Requires specifying a docker image for the experiment to be executed in.
* Manually specify the python environment configuration:
* Python binary - The python executable to use
* Preinstalled venv - A specific existing virtual environment to use. Requires specifying a docker image for the
experiment to be executed in.
* Python package specification:
* Skip - Assume system packages are available. Requires specifying a docker image for the experiment to be
executed in.
* Use an existing `requirements.txt` file
* Explicitly specify the required packages
* **Docker** (*optional*) - Specify Docker container configuration for executing the experiment
* Image - Docker image to use for running the experiment
* Arguments - Add Docker arguments as a single string
* Startup Script - Add a bash script to be executed inside the Docker before setting up the experiment's environment
:::important
For a task to run in the specified container, the ClearML Agent executing the task must be running in
Docker mode:
```bash
clearml-agent daemon --queue --docker
```
For more information, see [Docker Mode](../clearml_agent/clearml_agent_execution_env.md#docker-mode).
:::
* **Run**
* Queue - [ClearML Queue](../fundamentals/agents_and_queues.md#what-is-a-queue) where the experiment should be
enqueued for execution
* Output Destination - A URI where experiment outputs should be stored (ClearML file server by default).
1. Once you have input all the information, click one of the following options
* Save as Draft - Save the experiment as a new draft task.
* Run - Enqueue the experiment for execution in the queue specified in the **Run** tab
Once you have completed the experiment creation wizard, the experiment will be saved in your current project (where
you clicked `+ New Experiment`). See what you can do with your experiment in [Experiment Actions](#experiment-actions).
## Experiments Table Columns
The experiments table default and customizable columns are described in the following table.
| Column | Description | Type |
|---|---|---|
| **TYPE** | Type of experiment. ClearML supports multiple [task types](../fundamentals/task.md#task-types) for experimentation, and a variety of workflows and use cases. | Default |
| **NAME** | Experiment name. | Default |
| **TAGS** | Descriptive, user-defined, color-coded tags assigned to experiments. Use tags to classify experiments, and filter the list. See [tagging experiments](webapp_exp_track_visual.md#tagging-experiments). | Default |
| **STATUS** | Experiment state (status). See a list of the [task states and state transitions](../fundamentals/task.md#task-states). If you programmatically set task progress values, you will also see a progress indicator for Running, Failed, and Aborted tasks. See [here](../clearml_sdk/task_sdk.md#tracking-task-progress). | Default |
| **PROJECT** | Name of experiment's project. | Default |
| **USER** | User who created or cloned the experiment. | Default (hidden) |
| **STARTED** | Elapsed time since the experiment started. To view the date and time of start, hover over the elapsed time. | Default |
| **UPDATED** | Elapsed time since the last update to the experiment. To view the date and time of update, hover over the elapsed time. | Default |
| **ITERATION** | Last or most recent iteration of the experiment. | Default |
| **DESCRIPTION** | A description of the experiment. For cloned experiments, the description indicates it was auto generated with a timestamp. | Default (hidden) |
| **RUN TIME** | The current / total running time of the experiment. | Default (hidden) |
| **_Metrics_** | Add metrics column (last, minimum, and/or maximum values). The metrics depend upon the experiments in the table. See [adding metrics](#to-add-metrics). | Customizable |
| **_Hyperparameters_** | Add hyperparameters. The hyperparameters depend upon the experiments in the table. See [adding hyperparameters](#to-add-hyperparameters). | Customizable |
## Customizing the Experiments Table
Customize the table using any of the following:
* Dynamic column order - Drag a column title to a different position.
* Resize columns - Drag the column separator to change the width of that column. Double-click the column separator for
automatic fit.
* Changing table columns
* Show / hide columns - Click
**>** mark or clear the checkboxes of columns to show or hide.
* Add custom columns - Click **+ METRICS** or **+ HYPERPARAMETERS** to add metric / hyperparameter columns to the
main column list. Added columns are by default displayed in the table. You can remove the custom columns from the
main column list or the column addition windows.
* [Filter columns](#filtering-columns)
* Sort columns - According to metrics and hyperparameters, type of experiment, experiment name, start and last update elapsed time, and last iteration.
Use experiments table customization for various use cases, including:
* Creating a [leaderboard](#creating-an-experiment-leaderboard) that will update in real time with experiment
performance, which can be shared and stored.
* Sorting models by metrics - Models are associated with the experiments that created them. For each metric, use the last
value, the minimal value, and/or the maximal value.
* Tracking hyperparameters - Track hyperparameters by adding them as columns, and applying filters and sorting.
Changes are persistent (cached in the browser), and represented in the URL so customized settings can be saved in a browser
bookmark and shared with other ClearML users to collaborate.
:::note
The following experiments-table customizations are saved on a **per-project** basis:
* Columns order
* Column width
* Active sort order
* Active filters
* Custom columns
If a project has subprojects, the experiments can be viewed by their subproject groupings or together with
all the experiments in the project. The customizations of these two views are saved separately.
:::
### Adding Metrics and/or Hyperparameters
Add metrics and/or hyperparameters columns to the experiments table. The metrics and hyperparameters depend upon the
experiments in the table.
#### To Add Metrics:
* Click **>** **+ METRICS** **>** Expand a metric **>** Select the **LAST** (value),
**MIN** (minimal value), and/or **MAX** (maximal value) checkboxes.
#### To Add Hyperparameters:
* Click **>** **+ HYPERPARAMETERS** **>** Expand a section **>** Select the
hyperparameter checkboxes.
:::note Float Values Display
By default, the experiments table displays rounded up float values. Hover over a float to view its precise value in the
tooltip that appears. To view all precise values in a column, hover over a float and click
.
:::
### Filtering Columns

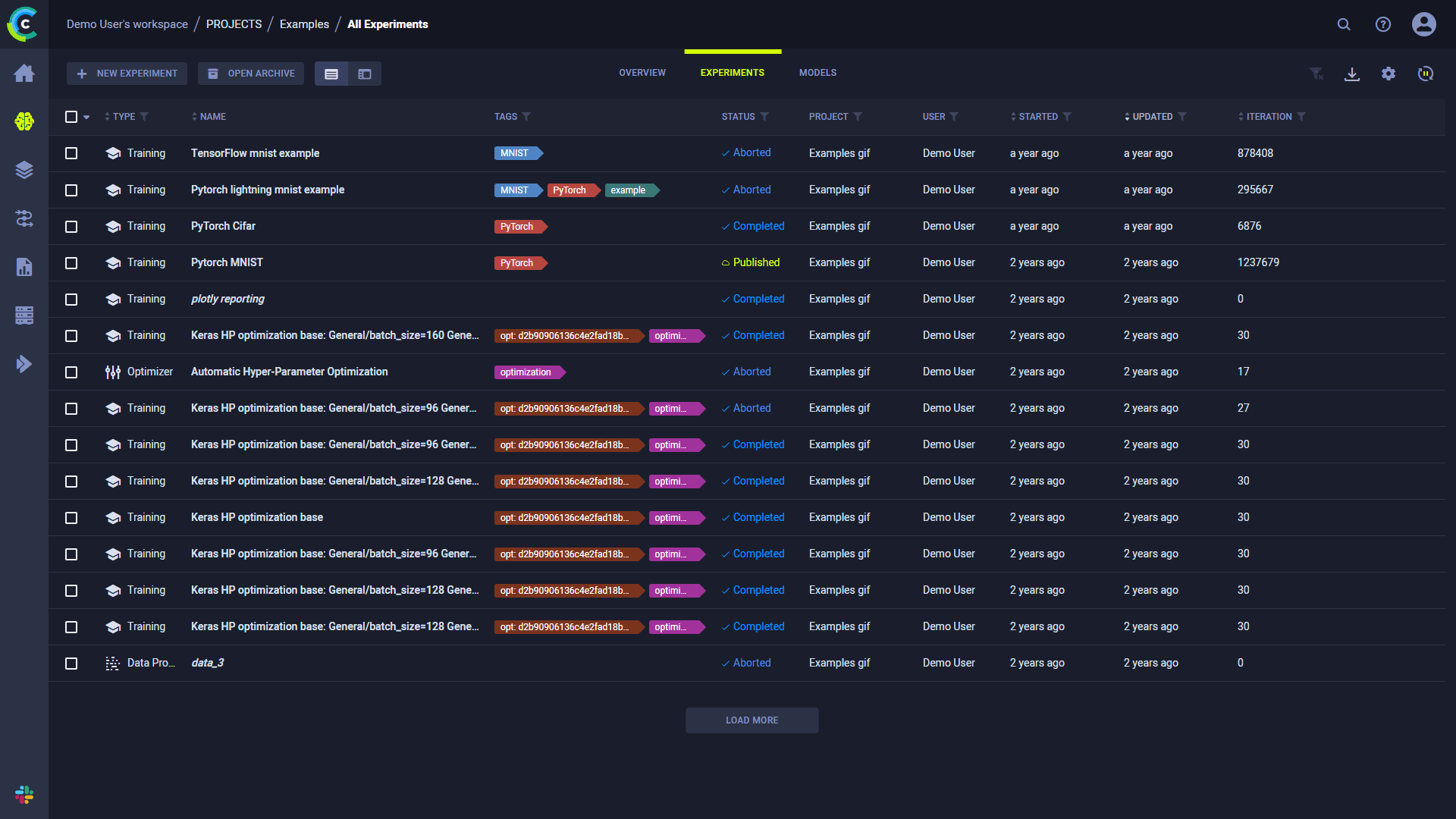

Filters can be applied by clicking
on a column, and the relevant filter appears.
There are a few types of filters:
* Value set - Choose which values to include from a list of all values in the column
* Numerical ranges - Insert minimum and/or maximum value
* Date ranges - Insert starting and/or ending date and time
* Tags - Choose which tags to filter by from a list of all tags used in the column.
* Filter by multiple tag values using the **ANY** or **ALL** options, which correspond to the logical "AND" and "OR" respectively. These
options appear on the top of the tag list.
* Filter by the absence of a tag (logical "NOT") by clicking its checkbox twice. An `X` will appear in the tag's checkbox.
Once a filter is applied to a column, its filter icon will appear with a highlighted dot on its top right (
).
To clear all active filters, click
in the top right corner of the table.
## Experiment Actions
The following table describes the actions that can be done from the experiments table, including the [states](../fundamentals/task.md#task-states)
that allow each operation.
Access these actions in any of the following ways:
* In the experiments table, right-click an experiment or hover over an experiment and click
to open the context menu
* In an experiment info panel, click the menu button
* Through the batch action bar: available at screen bottom when multiple experiments are selected
| Action | Description | States Valid for the Action | State Transition |
|---|---|---|---|
| Details | Open the experiment's [info panel](webapp_exp_track_visual.md#info-panel) (keeps the experiments list in view). Can also be accessed by double-clicking an experiment in the experiments table. | Any state | None |
| View Full Screen | View experiment details in [full screen](webapp_exp_track_visual.md#full-screen-details-view). | Any state | None |
| Manage Queue | If an experiment is *Pending* in a queue, view the utilization of that queue, manage that queue (remove experiments and change the order of experiments), and view information about the worker(s) listening to the queue. See the [Workers and Queues](webapp_workers_queues.md) page. | *Enqueued* | None |
| View Worker | If an experiment is *Running*, view resource utilization, worker details, and queues to which a worker is listening. | *Running* | None |
| Share | For **ClearML Hosted Service** users only, [share](webapp_exp_sharing.md) an experiment and its model with a **ClearML Hosted Service** user in another workspace. | Any state | None |
| Archive | Move experiment to the project's archive. If it is shared (ClearML Hosted Service only), the experiment becomes private. | Any state | *Pending* to *Draft* |
| Restore |Action available in the archive. Restore an experiment to the active experiments table.| Any State | None |
| Delete | Action available in the archive. Delete an experiment, which will also remove all their logs, results, artifacts and debug samples. | Any State | N/A |
| Enqueue | Add an experiment to a queue for a worker or workers (listening to the queue) to execute. | *Draft* | *Pending* |
| Dequeue | Remove an experiment from a queue. | *Pending* | *Draft* |
| Reset | Delete the log and output from a previous run of an experiment (for example, before rerunning it). | *Completed*, *Aborted*, or *Failed* | *Draft* |
| Abort | Manually terminate a *Running* experiment. | *Running* | *Aborted* |
| Abort All Children | Manually terminate all *Running* experiments which have this task as a parent | *Running* or *Aborted* | None for parent experiment, *Aborted* for child experiments |
| Publish | Publish an experiment to prevent changes to its tracking data, inputs, and outputs. Published experiments and their models are read-only. *Published* experiments cannot be enqueued, but they can be cloned, and their clones can be edited, tuned, and enqueued. | *Completed*, *Aborted*, or *Failed*. | *Published* |
| Add Tag | Tag experiments with color-coded labels to assist you in organizing your work. See [tagging experiments](webapp_exp_track_visual.md#tagging-experiments). | Any state | None |
| Clone | Make an exact, editable copy of an experiment (for example, to reproduce an experiment, but keep the original). | *Draft* | Newly Cloned Experiment is *Draft* |
| Move to Project | Move an experiment to another project. | Any state | None |
| Compare | Compare selected experiments (see [Comparing Experiments](webapp_exp_comparing.md)) | Any state | None |
:::important Enterprise Feature
The ClearML Enterprise Server provides a mechanism to define your own custom actions, which will
appear in the context menu. Create a custom action by defining an HTTP request to issue when clicking on the context menu
action. For more information see [Custom UI Context Menu Actions](../deploying_clearml/clearml_server_config.md#custom-ui-context-menu-actions).
:::
Most of the actions mentioned in the chart above can be performed on multiple experiments at once.
[Select multiple experiments](#selecting-multiple-experiments), then use either the context menu, or the batch action bar
that appears at the bottom of the page, to perform
operations on the selected experiments. Actions can be performed only on the experiments that match the action criteria
(for example, only *Running* experiments can be aborted). The context menu shows the number
of experiments that can be affected by each action. The same information can be found in the batch action bar, in a tooltip that
appears when hovering over an action icon.
## Selecting Multiple Experiments
Select multiple experiments by clicking the checkbox on the left of each relevant experiment. Clear any existing selection
by clicking the checkbox in the top left corner of the table.
Click the checkbox in the top left corner of the table to select all items currently visible.
An extended bulk selection tool is available through the down arrow next to the checkbox in the top left corner, enabling
selecting items beyond the items currently on-screen:
* **All** - Select all experiments in the project
* **None** - Clear selection
* **Filtered** - Select **all experiments in the project** that match the current active filters in the project
## Comparing Experiments
The comparison view compares experiment scalar and plot results (for a more in depth comparison, see [Comparing Experiments](webapp_exp_comparing.md)).
When selected, the view presents a comparison of all [selected experiments](#selecting-multiple-experiments). If no
experiments are selected, the first 100 visible experiments in the table are displayed in the comparison.
In the dropdown menu, select to view **Scalars** or **Plots**. **Scalars** shows experiment scalar results as time
series line graphs. **Plots** shows the last reported iteration sample of each metric/variant combination per compared
experiment.
Line, scatter, and bar graphs are compared by overlaying each metric/variant from all compared experiments' into a
single comparative plot.
Other plot types are displayed separately for each experiment.
All single value scalars are plotted into a single clustered bar chart under the "Summary" title, where each cluster
represents a reported metric, and each bar in the cluster represents an experiment.
Click to customize which
metrics to view.
In the **Scalars** view, click
to access
[scalar plot tools](webapp_exp_track_visual.md#scalar-plot-tools).
## Creating an Experiment Leaderboard
Filter and sort the experiments of any project to create a leaderboard that can be shared and stored. This leaderboard
updates in real time with experiment performance and outputs.
Modify the experiments table in the following ways to create a customized leaderboard:
* Add experiment configuration ([hyperparameters](#to-add-hyperparameters))
* Edit and add experiments [properties](webapp_exp_track_visual.md#user-properties)
* Add reported [metrics](#to-add-metrics), any time series reported metric can be selected, then select the last reported
value, or the minimum / maximum reported value.
* Filter based on user (dropdown and select) or [experiment types](../fundamentals/task.md#task-types)
* Add specific [tags](webapp_exp_track_visual.md#tagging-experiments) and filter based on them.
Now the table can be sorted based on any of the columns (probably one of the performance metrics). Select to filter experiments
based on their name by using the search bar.
The final dashboard can be shared by copying the URL from the address bar, this address will replicate the exact same dashboard on any browser.
The dashboard can also be bookmarked for later use.
