title: Monai
|
||||
---
|
||||
|
||||
:::tip
|
||||
If you are not already using ClearML, see [Getting Started](../getting_started/ds/ds_first_steps.md) for setup
|
||||
instructions.
|
||||
:::
|
||||
|
||||
[Monai](https://github.com/Project-MONAI/MONAI) is a PyTorch-based, open-source framework for deep learning in healthcare
|
||||
imaging. You can integrate ClearML into your code using Monai's built-in handlers: [`ClearMLImageHandler`, `ClearMLStatsHandler`](#clearmlimagehandler-and-clearmlstatshandler),
|
||||
and [`ModelCheckpoint`](#modelcheckpoint).
|
||||
|
||||
## ClearMLImageHandler and ClearMLStatsHandler
|
||||
|
||||
Use the `ClearMLImageHandler` and the `ClearMLStatsHandler` to log images and metrics respectively to ClearML.
|
||||
`ClearMLImageHandler` extends all functionality from [`TensorBoardImageHandler`](https://docs.monai.io/en/latest/handlers.html#monai.handlers.TensorBoardImageHandler,
|
||||
used for visualizing images, labels, and outputs. `ClearMLStatsHandler` extends all functionality from [`TensorBoardStatsHandler`](https://docs.monai.io/en/latest/handlers.html#monai.handlers.TensorBoardStatsHandler),
|
||||
which is used to define a set of Ignite Event handlers for TensorBoard logic. ClearML automatically captures all
|
||||
TensorBoard outputs.
|
||||
|
||||
For example, the code below attaches the ClearML image handler and stats handler to an Ignite evaluator engine:
|
||||
|
||||
```python
|
||||
# ignite evaluator
|
||||
evaluator = ignite.engine.create_supervised_evaluator(
|
||||
net,
|
||||
val_metrics,
|
||||
device,
|
||||
True,
|
||||
output_transform=lambda x, y, y_pred: (
|
||||
[post_pred(i) for i in decollate_batch(y_pred)],
|
||||
[post_label(i) for i in decollate_batch(y)],
|
||||
),
|
||||
)
|
||||
# add handler to draw the first image and the corresponding
|
||||
# label and model output in the last batch
|
||||
# here we draw the 3D output as GIF format along Depth
|
||||
# axis, at every validation epoch
|
||||
val_clearml_image_handler = ClearMLImageHandler(
|
||||
task_name=task_name,
|
||||
project_name=project_name,
|
||||
log_dir=log_dir,
|
||||
batch_transform=lambda batch: (batch[0], batch[1]),
|
||||
output_transform=lambda output: output[0],
|
||||
global_iter_transform=lambda x: trainer.state.epoch,
|
||||
)
|
||||
evaluator.add_event_handler(
|
||||
event_name=ignite.engine.Events.EPOCH_COMPLETED,
|
||||
handler=val_clearml_image_handler,
|
||||
)
|
||||
|
||||
# add handler to record metrics to clearml at every validation epoch
|
||||
val_clearml_stats_handler = ClearMLStatsHandler(
|
||||
log_dir=log_dir,
|
||||
# no need to plot loss value, so disable per iteration output
|
||||
output_transform=lambda x: None,
|
||||
# fetch global epoch number from trainer
|
||||
global_epoch_transform=lambda x: trainer.state.epoch,
|
||||
)
|
||||
val_clearml_stats_handler.attach(evaluator)
|
||||
```
|
||||
|
||||
When the code runs with either of these handlers, it creates a [ClearML Task](../fundamentals/task.md) called `monai_experiment` in the `MONAI` project. To
|
||||
change the task's name or project, use the `task_name` and `project_name` parameters when instantiating either handler.
|
||||
The task captures the images logged by the image handler, metrics logged with the stats handler, as well as source code,
|
||||
uncommitted changes, installed packages, console output, and more.
|
||||
|
||||
You can see all the captured data in the task’s page of the ClearML [WebApp](../webapp/webapp_exp_track_visual.md).
|
||||
|
||||

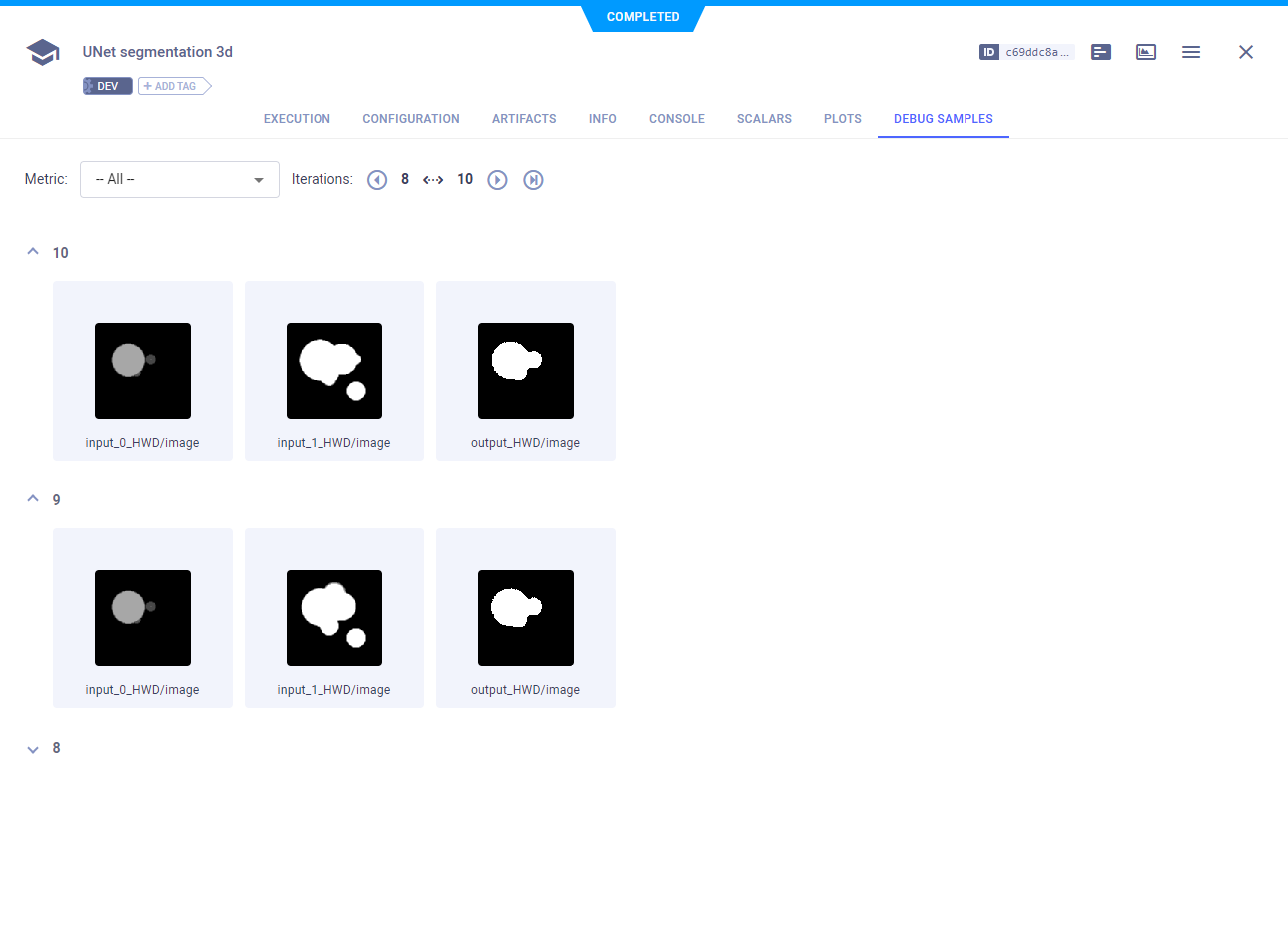

View the logged images in the WebApp, in the experiment's **Debug Samples** tab.
|
||||
|
||||
![Debug Samples](../img/monai_clearml_debug_samples.png)
|
||||
|
||||
View the logged metrics in the WebApp, in the experiment's **Scalars** tab.
|
||||
|
||||
![MONAI scalars](../img/monai_clearml_scalars.png)
|
||||
|
||||
## ModelCheckpoint
|
||||
|
||||
ClearML automatically logs models saved using the `ModelCheckpoint` handler. Make sure a ClearML Task is instantiated in
|
||||
your script. If you're already using either `ClearMLStatsHandler` or `ClearMLImageHandler`, you don't have to add any code.
|
||||
Otherwise, all you have to is add two lines of code to create a task:
|
||||
|
||||
```python
|
||||
from clearml import Task
|
||||
|
||||
task = Task.init(task_name="<task name>", project_name="<project_name>")
|
||||
```
|
||||
|
||||
The code below creates a handler to save models. When the script runs with a ClearML task, the task automatically
|
||||
captures the saved models.
|
||||
|
||||
```python
|
||||
# adding checkpoint handler to save models (network
|
||||
# params and optimizer stats) during training and log them to ClearML
|
||||
log_dir = os.path.join(root_dir, "logs")
|
||||
checkpoint_handler = ignite.handlers.ModelCheckpoint(log_dir, "net", n_saved=10, require_empty=False)
|
||||
trainer.add_event_handler(
|
||||
event_name=ignite.engine.Evclearents.EPOCH_COMPLETED,
|
||||
handler=checkpoint_handler,
|
||||
to_save={"net": net, "opt": opt},
|
||||
)
|
||||
```
|
||||
|
||||
View the captured models in the WebApp, in the experiment's **Artifacts** tab.
|
||||
|
||||
![MONAI models](../img/monai_clearml_models.png)
|
